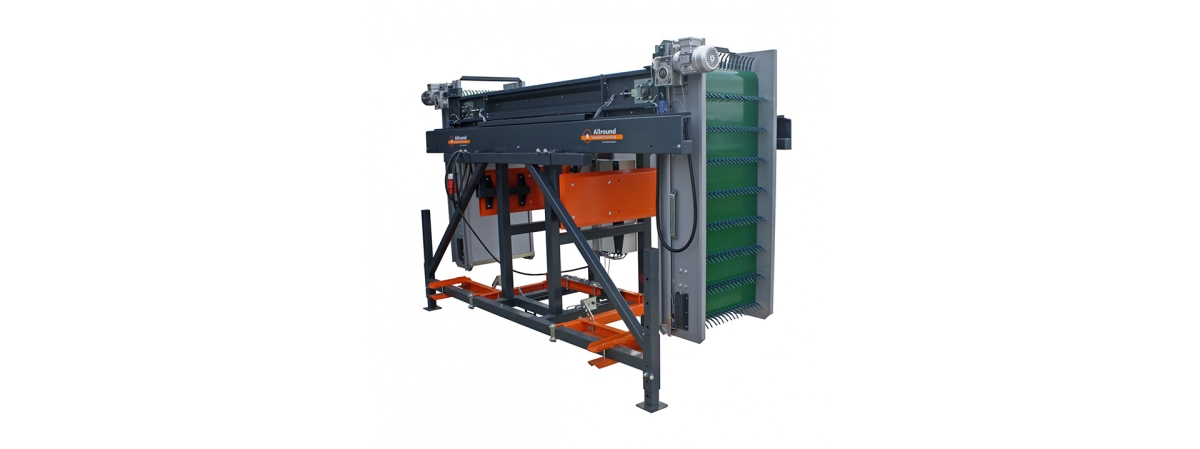

Box fillers are designed to fill boxes of various sizes in the most product friendly way possible. The machines are designed in such a way that the fall height is reduced as much as possible. When boxes are removed in time, the machine is capable of filling without interruptions.
The vertical belts are lowered in the box, and fill layer by layer. In this setup, the drop height is reduced to an absolute minimum.

Options

•    Supply elevator

•    Also suitable for big-bag

Specifications

Length : 3550 mm
Width : 1400 mm
Length horizontal belt : 3000 mm
Width supply belt : 700 mm
Length cleats vertical belts : 120 mm
Box max. L x W x H (mm) : 2240 x 1200 x 1250 mm
